WHICH KITE IS RIGHT FOR YOU?

A-SERIES

A = FULL ALUULA AIRFRAME


At the pinnacle of the technological advancements and opportunities that our work alongside ALUULA Composites has provided sits our A-Series kite range, which all benefit from the ultra-light and ultra-strong ALUULA airframe, and are now lauded as the most cutting-edge kites in the sport.


When we first revealed our work with ALUULA to the kitesurfing world, there was reasonable and valid debate as to whether the hype would really match up to the material’s potential, and to the performance levels that we were promising. Happily, as has since been proven and documented, the hype has gone beyond everyone’s expectations.


Lighter, stronger, with higher performance levels and a bigger wind range than standard kites, the A-Series have set the new standard in high-end kiteboarding… a standard that continues to develop as we explore the endless possibilities that ALUULA presents us.

UNRIVALED PERFORMANCE

IN EVERY RESPECT, AIRFRAMES BUILT WITH ALUULA GOLD™

MATERIAL OUTPERFORMS THE COMPETITION.

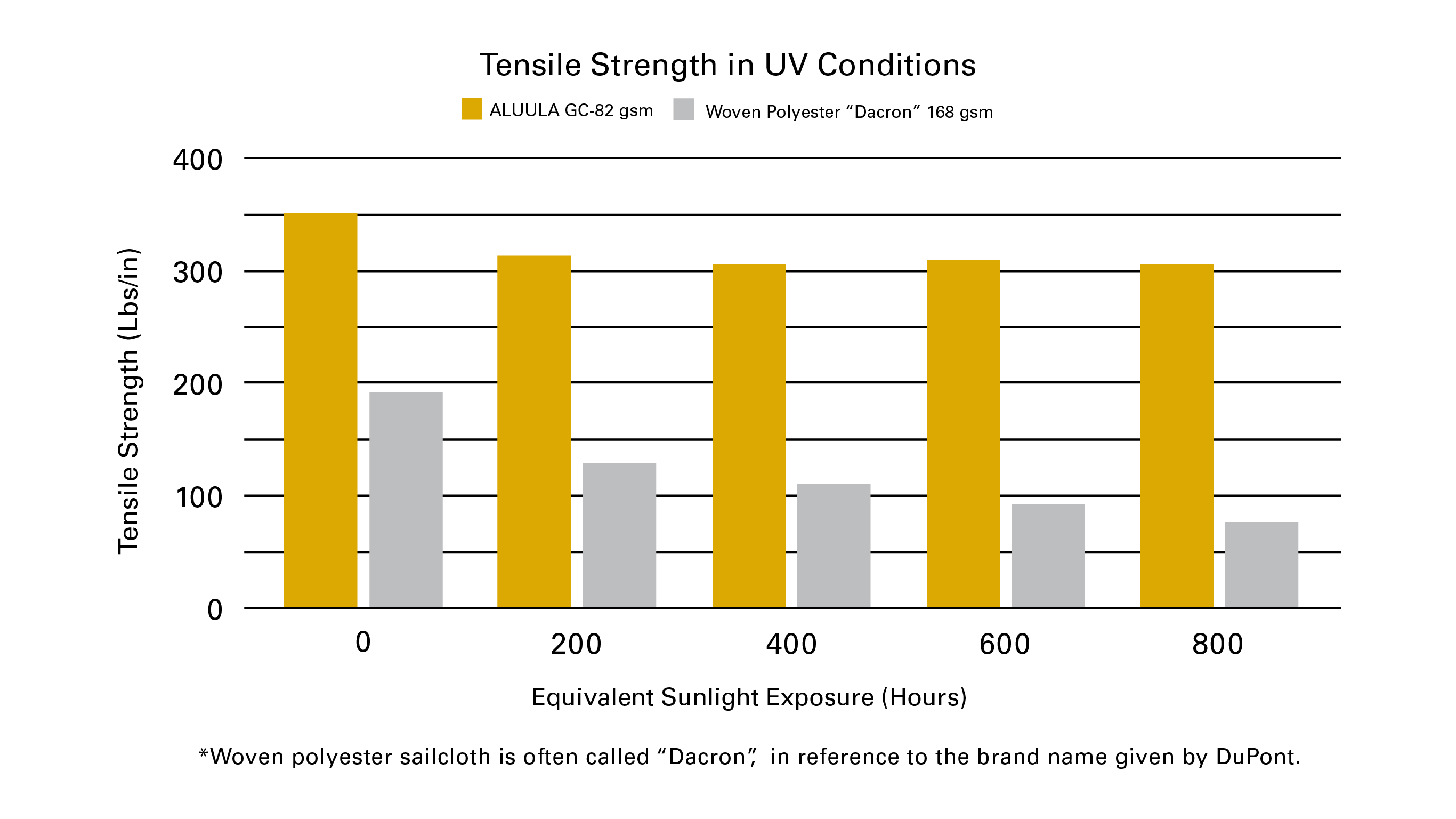

At less than half the weight, ALUULA Gold™ has almost 50% higher tensile strength than “Dacron” when new, and is 70% stronger than “Dacron” after 800 hours UV test in the lab.

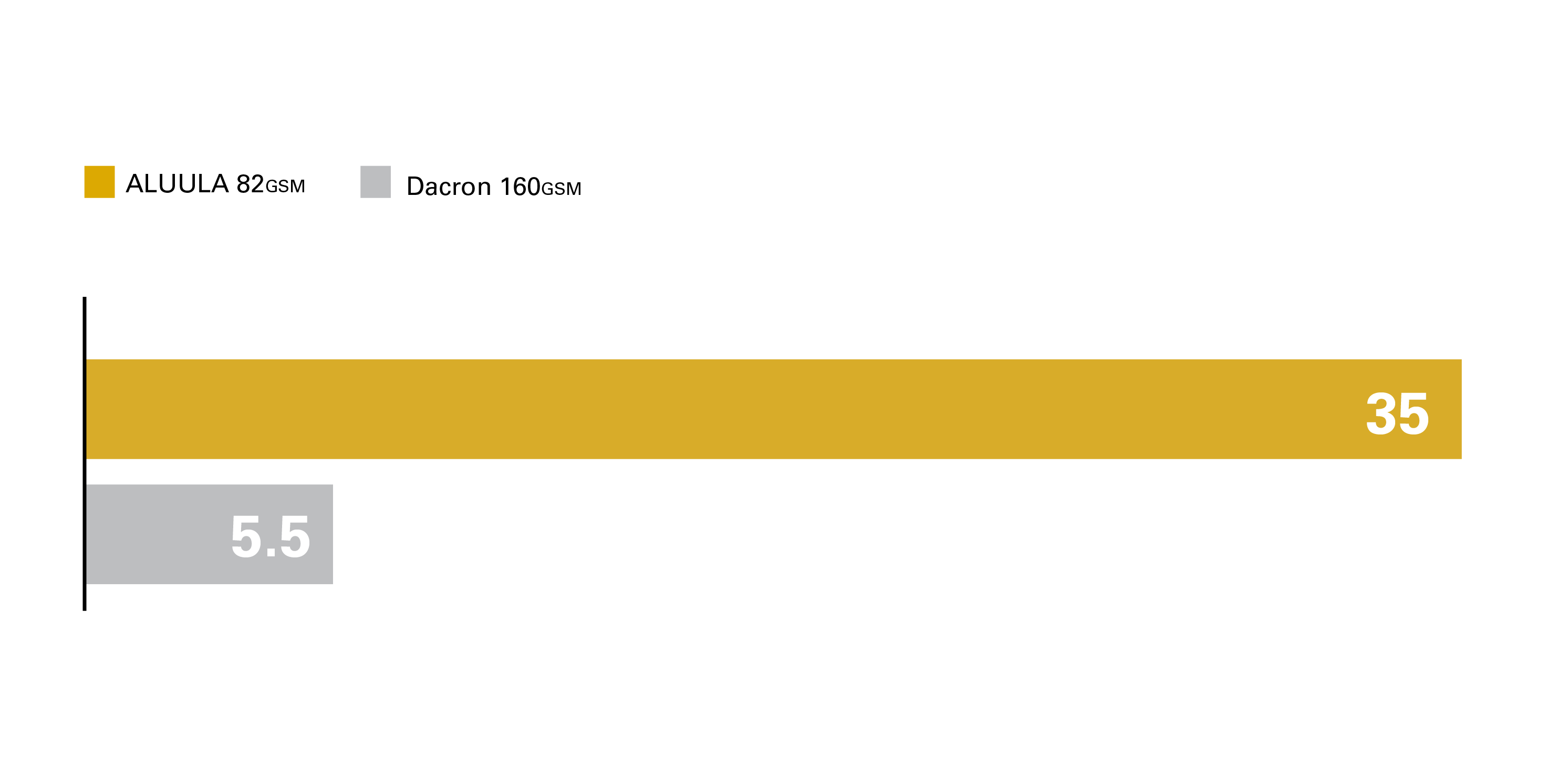

ALUULA is 15 times stronger than “Dacron” when new, and more than 35 times stronger after the same UV exposure.

Tensile Strength (Warp / Weft)

Tensile strength is a measurement of the force required to pull something such as rope, wire, or a structural beam to the point where it breaks.

Moduls (N/mm2)

Modulus of elasticity measures a material’s resistance to being deformed elastically (not permanently) when stress is applied.

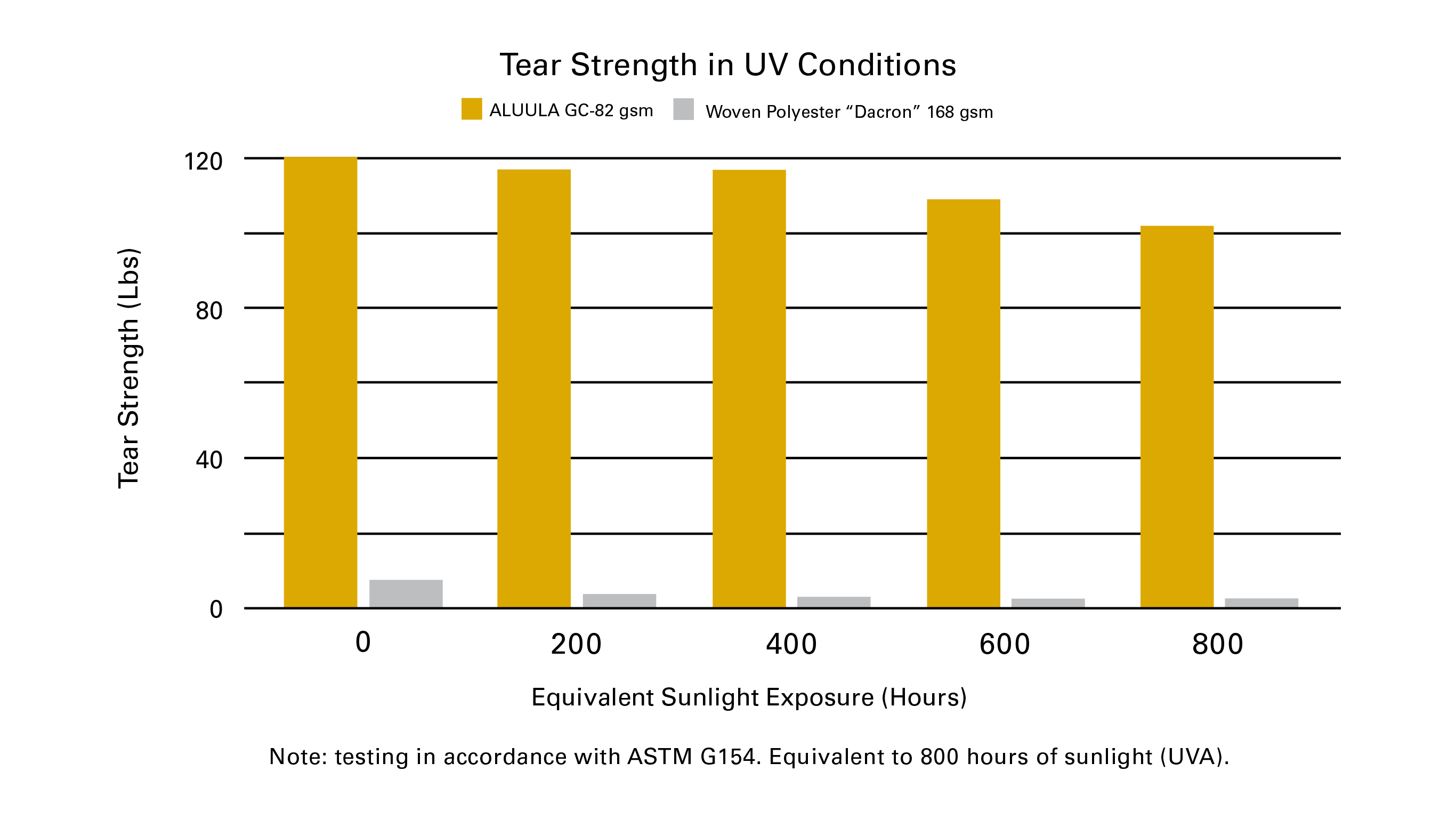

Tear Strength (Lbs of force)

Tear resistance (or tear strength) is a measure of how well a material can withstand the effects of tearing.

A-SERIES FEATURES

LEADING EDGE TECHNOLOGY

FULL ALUULA LE

Made entirely of ALUULA Vaepor™ (82 gsm) composite, the A-Series airframe is the lightest, strongest and most responsive on the market.


With six times the tensile strength of a Dacron leading edge, the all-ALUULA leading edge stiffens and lightens the entire kite, providing the most refined handling and performance in all conditions.


The leading edge can be tuned to higher inflation pressures than is possible with Dacron to allow further stiffness to the airframe.



RIDGE LOCK SEAM

This innovative seam technology is designed specifically for ALUULA. The ridge moves the stress of the stitch holes and threads to the anti compression ridge. Strategically located to add additional stability to the leading edge, the Ridge Seam helps stabilize the kites arc in gusty and high wind conditions.


HEX LOCK SEAM

Another unique seam from the ALUULA design team. Hex Lock resists torque and pressures far beyond existing seam techniques, and it has been designed specifically for ALUULA composite materials. Hex Lock is used exclusively on leading edge and strut segment seams.

STRUT TECHNOLOGY

ALUULA PERCISION CURVED STRUTS

The precision curved are composed entirely out of the ultra light, ultra strong, UV stable and virtually unrippable ALUULA composite material; The A-Series’ struts offer more rigidity and control, while also significantly reducing their weight and therefore increasing performance capability.


QUAD LOCK SEAMS

Used specifically on the shaping seams of struts, Quad Lock delivers more strength than a standard strut seam construct, and was another innovation specifically tailored for the ALUULA airframe kites.


These unique and innovative seams allow for the airframe to be inflated to a higher PSI than traditional kites.

BRIDLE SYSTEM

Highly refined, the compact two pulley bridle is designed for arc stability and no snagging, while at the same time providing direct drive steering and a massive sheeting range. The Bridle is compatible with all bars that feature a single front line flag out emergency de-power system.


Industry standard larks head on LE bridle to front flying line knot or bead. Back lines larks head to bead or knot on kites back line leader. Bridle is designed to accept bars fitted with lines at equal length when set at pull power.


Features ultra strong, low diameter, stretch resistant line for reduced drag and increased response.


LOW-DRAG BRIDLE LINE

All of the the A-Series kites use a combination of Liros DC Pro 301 and 401 lines. These new lines are not only lighter than previous generations, they are also stronger and offer less drag.


BRIDLE KNOT FLOATS

The main bridle knot now features a lightweight cover which ensures there are no tangles and keeps the bridle floating, while supporting the weight of the pulley.

REINFORCED CANOPY

ALUULA REINFORCED

The canopy's reinforcements, overlays and anti-flutter strips now benefit from ALUULA’s remarkable strength to weight ratio and it's superior abrasion resistance compared to Dacron and other much heavier abrasion solutions.


TEIJIN D2 RIPSTOP CANOPY

Designed specifically for the kiteboarding market, Teijin’s Technoforce D2 ripstop has high tear resistance, low stretch, and is incredibly lightweight.


Each strand of yarn is individually coated before being woven together. A second surface coating is then applied to the material, providing long term endurance.


Teijin D2 is the benchmark in quality with proven superiority in durability and dynamics.

INFLATION SYSTEM

SPEED INFLATION SYSTEM

Our ultra clean inflation system is designed for reliable operation of single point inflation. Valves are strategically located to stay clear of the canopy, negating the need for valve covers or other chafing solutions.


Other refinements include the omission of zippers on the leading edge. These zippers are used only for kite bladder changing, and are one of the primary causes of failure on kite leading edges. Bladders are simply installed though the large valve hole.


HIGH CAPACITY VALVE

Every aspect of our Speed Inflation System has been fine tuned over the years to be low profile, reduce drag, and above all to ensure that you spend less time on the beach and more time on the water.

SHERPA TECH Kite BAG

The Sherpa Kite Bag comes standard with all A-Series kites.


We’ve all been there, draping multiple kite bags, pumps and boards over every appendage of our bodies. Fumbling our way through rugged terrain in search of that perfect wave or glassy flat.


The Sherpa system makes it easy to connect and stack an unlimited numbers of kite bags off your back or chest for a perfectly balanced hike in and out.


Free up your hands and arms for effortless climbing. In seconds, stash your board and pump away. Designed for riders who search for the ultimate ride, it’s never been easier to find out what’s around the next headland.



To make things even easier the Super-Lite Kite Bag is colour coded via strategically placed colour coded size labels. Aligned to match wind strength colours used by leading web-based wind forecast websites, with a quick glance you’ll know if you’re grabbing a 17m or 9.5m.


WHY ALUULA?

A lighter wing means better handling in all conditions.

ALUULA, an ultra-light, ultra-strong and stable composite material not only improves light wind performance, but also increases handling, stability and flying performance in all wind conditions. This makes an ALUULA wing more efficient than a standard wing, performing better in all respects, including improved flex for more reactive pumping, lighter weight for easy hand work and balanced one handed drifting.


Why do you need the lightest wings on the market?


Better for all styles of riding. Downwinders, surf, freestyle and more. With improved response in all conditions, you'll enjoy easier transitions, better light wind and enhanced top end control due to reduced distortion in gusts delivered by the stretch resistant ALUULA.


• Better wind range. Every Ocean Rodeo wing features the full ALUULA strut. Built to withstand 12 psi, this high pressure strut connects your input directly to the leading edge and canopy without delay or distortion.


• Better for travel. When two A-Series wings weigh the same as one traditional wing, it's a no-brainer...carry more gear on your trips with less fear of excess baggage charges.
